Setting Up An Aruba Wireless Bridge

One of the most underrated features of Aruba wireless hardware is its ability to be used as a wireless bridge. Running a cable to provide power and data to an AP is always the best way, but sometimes you just can’t get one there and have to go wirelessly.

With the release of Instant v 8.4, the concept of a mesh cluster name and key was introduced along with the AP-387 5/60GHz outdoor bridge. This mesh cluster mode lets the APs in the cluster establish their own mesh SSID and encryption, without the brain damage of provisioning those parameters on each device. This also introduced the concept of a standalone Instant AP, which allows you to run a point-to-point bridge or a multipoint mesh without the AP trying to join an existing Instant Virtual Cluster (VC).

Once a bridge is established, it is fully transparent at L2. Anything that shows up on the interface on the Mesh Portal AP will pop out the other side on the Mesh Point’s bridged Ethernet interface. You can optionally prune VLANs if you need to.

Key Terms:

  • WIRELESS MESH : one or more access points that connect to the network wirelessly.
  • MESH PORTAL/MESH ROOT: an access point in a mesh network that is connected to the network via an Ethernet connection. An Aruba AP configured for mesh will determine if it is a portal by listening for traffic on the Ethernet port. a given mesh cluster can have multiple portals.
  • MESH POINT: an access point in a mesh network that is connected to the network via one or more wireless connections to a Mesh Portal. Mesh points can also provide a wireless connection to another mesh point, but you don’t want to go more than one or two hops to a root bridge. If you have to go long distances, a linear mesh topology may be more useful. An Aruba AP will determine it is a mesh point in a cluster by either not seeing traffic on the Ethernet ports, or if the Ethernet port is set to bridging mode and has devices downstream.
  • MESH CLUSTER: A group of Aruba APs that are configured for the same mesh.

What you will need:

  • two Aruba APs that support Instant 8.4 or higher. Update them to the latest 8.7 code train if you can. I labbed this up on a pair of AP-515s, but the APs don’t necessarily have to be the same model of hardware, just the same software version. The Aruba mesh will operate on 5GHz.
  • A means of powering both APs. This can be PoE, but you’ll want the network on the Mesh Point side of the link to be an isolated Layer 2 segment from the one on the Mesh Portal, otherwise you’ll create a loop when the bridge comes up. It’s generally easiest to put a separate PoE switch on each end, making it easier to connect devices to troubleshoot. If using PoE, make sure it’s sufficient to run the AP.
  • Not strictly necessary, but helpful: A console cable for each AP. The 570 series APs use a standard USB Type C connection and ship with the requisite cable. Otherwise you’ll need either the “Orange Cable” (JY728A AP-CBL-SERU) that has a Micro-B connector on the end (this isn’t actually USB, so don’t even bother trying to use a standard MicroUSB cable), or the older TTL pin header to DB9 cable.

To start, hook up the console cable to the AP, and power it on. When prompted, stop the boot loader. Once at the boot loader prompt, issue the following commands:

factory_reset
setenv standalone 1
setenv uap_controller_less 1
saveenv
boot

This does the following:

  • resets the AP to factory defaults
  • sets the AP to standalone mode (ignores any incoming L2 Instant VC broadcasts and suppresses any outgoing ones)
  • Sets the AP to Controllerless (Instant)
  • Saves the environment variables
  • Boots the AP.

You can also do this from a booted AP on the AOS CLI by issuing the following commands:

write erase all
swarm-mode standalone
reload

Once the AP is booted up into standalone mode, you’ll need to log in via the GUI or the CLI (console or ssh) using the default credentials (admin/admin or admin/serial#), and set a new admin password. Once you’ve done this, you’ll need to create an access SSID to get it out of Instant’s SetMeUp mode. You can disable this later if the AP is not also being used for access (generally not a good idea on a mesh bridge, unless you’re restricting it to the 2.4GHz radio which is unused by the mesh.) If you’re using an AP-387, you don’t need to do this.

Once you’ve created this dummy/temporary SSID (easiest from the Web UI), go to Configuration>System>Show Advanced Settings, disable Extended SSID and reboot.

On the CLI:

conf t
virtual-controller-country US
name Mesh-Portal (or name of your choice)
no extended-ssid
exit
commit apply
reload

Once the AP is back up, configure the mesh:

no mesh-disable
mesh-cluster-name <cluster name> (If doing multiple bridge links, each one must have a unique name)
mesh-cluster-key <cluster-key>
commit apply

If you’re in a multi-VLAN environment, this is also a good time to set VLANs and such. If you’re just running a flat network, skip this part.

uplink-vlan <VLAN ID> (this is the VLAN the AP listens on)

#If configuring a static IP:
ip-address <ip-address> <subnet-mask> <nexthop-ip-address> <dns-ip-address> <domain-name>

conf t
wired-port-profile Mesh_Portal_Uplink-wpp
 switchport-mode trunk
 allowed-vlan <list of VLANs or "all">
 native-vlan <port Native VLAN>
 trusted
 no shutdown
 type employee
 auth-server InternalServer
 captive-portal disable
 no dot1x
exit

enet0-port-profile Mesh_Portal_Uplink-wpp
enet1-port-profile Mesh_Portal_Uplink-wpp

exit
commit apply

Check the status of the mesh cluster settings with:

show ap mesh cluster status

It should look something like this:

Mesh cluster      :Enabled
Mesh cluster name :Mesh_Lab
Mesh role         :Mesh Portal
Mesh Split5G Band Range :full
Mesh mobility     :Disabled

Now you’ll want to do the same process on the Mesh Point AP, plus the following to enable the bridging:

enet0-bridging
commit apply
reload

Once everything is booted back up, give it a few minutes to establish the mesh link, and then run:

show ap mesh link

Which will give you information about the link. the RSSI column is the SNR in dB. You can see from the flags that the link is running an 802.11ax/HE PHY (E), that legacy PHYs are allowed (L), and that it is connected to the mesh portal (K).

# show ap mesh link

Neighbor list
-------------
Radio  MAC                AP Name          Portal  Channel  Age  Hops  Cost  Relation                 Flags  RSSI  Rate Tx/Rx  A-Req  A-Resp  A-Fail  HT-Details    Cluster ID
-----  ---                -------          ------  -------  ---  ----  ----  -----------------        -----  ----  ----------  -----  ------  ------  ----------    ----------
0      aa:bb:cc:dd:ee:ff  Mesh_Lab_Portal  Yes     116E     0    0     4.00  P 22h:18m:57s            ELK    55    1531/1701   1      1       0       HE-80MHz-4ss  29c8af3dec64e7c278bfcbfab07a2a3

Total count: 1, Children: 0
Relation: P = Parent; C = Child; N = Neighbor; B = Blacklisted-neighbor
Flags: R = Recovery-mode; S = Sub-threshold link; D = Reselection backoff; F = Auth-failure; H = High Throughput; V = Very High Throughput, E= High efficient, L = Legacy allowed
        K = Connected; U = Upgrading; G = Descendant-upgrading; Z = Config pending; Y = Assoc-resp/Auth pending
        a = SAE Accepted; b = SAE Blacklisted-neighbour; e = SAE Enabled; u = portal-unreachable; o = opensystem

From this point, you should be able to send traffic across the link, and you’re ready to go install the bridge in its permanent home. If running outdoors, don’t forget to ensure a clear line of sight and unobstructed Fresnel Zone.

ArubaOS 8 API: AP Database

In my previous posts about the ArubaOS API, I’ve given a general framework for pulling data from the AOS Mobility Conductor or a Mobility Controller. Today I’m going to show how to retrieve the AP database and dump it into a CSV file which you can then open in Excel or anything else and work all kinds of magic (yes, I know, Excel is not a database engine, but it still works rather well with tabular data)

The long-form AP database command (show ap database long) provides lots of useful information about the APs in the system:

  • AP Name
  • AP Group
  • AP Model
  • AP IP Address
  • Status (and uptime if it’s up)
  • Flags
  • Switch IP (primary AP Anchor Controller)
  • Standby IP (standby AAC)
  • AP Wired MAC Address
  • AP Serial #
  • Port
  • FQLN
  • Outer IP (Public IP when it is a RAP)
  • User

This script will take the human-readable uptime string (“100d:12h:34m:28s”) and convert that to seconds so uptime can be sorted in your favorite spreadsheet. It will also create a grid of all the AP flags so that you can sort/filter on those after converting the CSV to a data table.

The code is extensively commented so you should be able to follow along. Also available on github.

#!/usr/bin/python3

# ArubaOS 8 AP Database to CSV output via API call
# (c) 2021 Ian Beyer, Aruba Networks <canerdian@hpe.com>
# This code is provided as-is with no warranties. Use at your own risk.

import requests
import json
import csv
import sys
import warnings
import sys
import xmltodict
import datetime


aosDevice = "1.2.3.4"
username = "admin"
password = "password"
httpsVerify = False

outfile="outputfilename.csv"


#Set things up

if httpsVerify == False :
    warnings.filterwarnings('ignore', message='Unverified HTTPS request')

baseurl = "https://"+aosDevice+":4343/v1/"


headers = {}
payload = ""
cookies = ""

session=requests.Session()
## Log in and get session token

loginparams = {'username': username, 'password' : password}
response = session.get(baseurl+"api/login", params = loginparams, headers=headers, data=payload, verify = httpsVerify)
jsonData = response.json()['_global_result']

if response.status_code == 200 :

    #print(jsonData['status_str'])
    sessionToken = jsonData['UIDARUBA']

else :
    sys.exit("Login Failed")

reqParams = {'UIDARUBA':sessionToken}

def showCmd(command, datatype):
    showParams = {
        'command' : 'show '+command,
        'UIDARUBA':sessionToken
            }
    response = session.get(baseurl+"configuration/showcommand", params = showParams, headers=headers, data=payload, verify = httpsVerify)

    if datatype == 'JSON' :
        #Returns JSON
        returnData=response.json()
    elif datatype == 'XML' :
        # Returns XML as a dict
        returnData = xmltodict.parse(response.content)['my_xml_tag3xxx']
    elif datatype == 'Text' :
        # Returns an array
        returnData =response.json()['_data']
    return returnData

apdb=showCmd('ap database long', 'JSON')

# This is the list of status flags in 'show ap database long'

apflags=['1','1+','1-','2','B','C','D','E','F','G','I','J','L','M','N','P','R','R-','S','U','X','Y','c','e','f','i','o','s','u','z','p','4']

# Create file handle and open for write.
with open(outfile, 'w') as csvfile:
 write=csv.writer(csvfile)

 # Get list of data fields from the returned list
 fields=apdb['_meta']

 # Add new fields for parsed Data
 fields.insert(5,"Uptime")
 fields.insert(6,"Uptime_Seconds")

 # Add fields for expanding flags
 for flag in apflags:
  fields.append("Flag_"+flag)
 write.writerow(fields)

 # Iterate through the list of APs
 for ap in apdb["AP Database"]:

   # Parse Status field into status, uptime, and uptime in seconds
   utseconds=0
   ap['Uptime']=""
   ap['Uptime_Seconds']=""

   # Split the status field on a space - if anything other than "Up", it will only contain one element, first element is status description.
   status=ap['Status'].split(' ')
   ap['Status']=status[0]

   # Additional processing of the status field if the AP is up as it will report uptime in human-readable form in the second half of the Status field we just split
   if len(status)>1:
    ap['Uptime']=status[1]

    #Split the Uptime field into each time field and strip off the training character, multiply by the requisite number of seconds an tally it up.
    timefields=status[1].split(':')
    # If by some stroke of luck you have an AP that's been up for over a year, you might have to add a row here - I haven't seen how it presents it in that case
    if len(timefields)>3 :
        days=int(timefields.pop(0)[0:-1])
        utseconds+=days*86400
    if len(timefields)>2 :
        hours=int(timefields.pop(0)[0:-1])
        utseconds+=hours*3600
    if len(timefields)>1 :
        minutes=int(timefields.pop(0)[0:-1])
        utseconds+=minutes*60
    if len(timefields)>0 :
        seconds=int(timefields.pop(0)[0:-1])
        utseconds+=seconds
    ap['Uptime_Seconds']=utseconds

   # FUN WITH FLAGS
   # Bust apart the flags into their own fields
   for flag in apflags:

    # Set field to None so that it exists in the dict
    ap["Flag_"+flag]=None

    # Check to see if the flags field contains data
    if ap['Flags'] != None :

     # Iterate through the list of possible flags and mark that field with an X if present
     if flag in ap['Flags'] :
      ap["Flag_"+flag]="X"

   # Start assembling the row to write out to the CSV, and maintain order and tranquility.
   datarow=[]

   # Iterate through the list of fields used to create the header row and append each one
   for f in fields:
    datarow.append(ap[f])

   # Put it in the CSV
   write.writerow(datarow)

   #Move on to the next AP

# Close the file handle
csvfile.close()

## Log out and remove session

response = session.get(baseurl+"api/logout", verify=False)
jsonData = response.json()['_global_result']

if response.status_code == 200 :

    #remove
    token = jsonData['UIDARUBA']
    del sessionToken

else :
    del sessionToken
    sys.exit("Logout failed:")

The human-readable output of the show ap database gives you a list of what the flags are, but the API call does not, so in case you want a handy reference, here it is in JSON format so that you can easily adapt it. (Github)

sheldon={
'1':'802.1x authenticated AP use EAP-PEAP',
'1+':'802.1x use EST',
'1-':'802.1x use factory cert',
'2':'Using IKE version 2',
'B':'Built-in AP',
'C':'Cellular RAP',
'D':'Dirty or no config',
'E':'Regulatory Domain Mismatch',
'F':'AP failed 802.1x authentication',
'G':'No such group',
'I':'Inactive',
'J':'USB cert at AP',
'L':'Unlicensed',
'M':'Mesh node',
'N':'Duplicate name',
'P':'PPPoe AP',
'R':'Remote AP',
'R-':'Remote AP requires Auth',
'S':'Standby-mode AP',
'U':'Unprovisioned',
'X':'Maintenance Mode',
'Y':'Mesh Recovery',
'c':'CERT-based RAP',
'e':'Custom EST cert',
'f':'No Spectrum FFT support',
'i':'Indoor',
'o':'Outdoor',
's':'LACP striping',
'u':'Custom-Cert RAP',
'z':'Datazone AP',
'p':'In deep-sleep status',
'4':'WiFi Uplink'
}

Working with the ArubaOS API: Reading Data

Another quick bit today – this is the basic framework for using the REST API in ArubaOS. Lots of info at the Aruba Developer Hub. This is primarily for executing show commands and getting the data back in a structured JSON format.

However, be aware that not all show commands return structured JSON – some will return something vaguely XMLish, and some will return the regular text output inside a JSON wrapper (originally the showcommand API endpoint was just a wrapper for the actual commands and would just return the CLI output, as it still does for several commands)

You can always go to https://<controller IP>:4343/api (after logging in) and get a Swagger doc for all the available API calls – although owing to system limitations, the description of those endpoints isn’t generally there, but it can be found in the full AOS8 API reference.

This blog entry does not deal with sending data to the ArubaOS device.

#!/usr/bin/python3

import requests
import json
import warnings
import sys
import xmltodict


aosDevice = "1.2.3.4"
username = "admin"
password = "password"
httpsVerify = False



#Set things up

if httpsVerify == False :
	warnings.filterwarnings('ignore', message='Unverified HTTPS request')

baseurl = "https://"+aosDevice+":4343/v1/"


headers = {}
payload = ""
cookies = ""

session=requests.Session()
## Log in and get session token

loginparams = {'username': username, 'password' : password}
response = session.get(baseurl+"api/login", params = loginparams, headers=headers, data=payload, verify = httpsVerify)
jsonData = response.json()['_global_result']

if response.status_code == 200 :

	#print(jsonData['status_str'])
	sessionToken = jsonData['UIDARUBA']

#	print(sessionToken)
else :
	sys.exit("Login Failed")

reqParams = {'UIDARUBA':sessionToken}

def showCmd(command, datatype):
	showParams = {
		'command' : 'show '+command,
		'UIDARUBA':sessionToken
			}
	response = session.get(baseurl+"configuration/showcommand", params = showParams, headers=headers, data=payload, verify = httpsVerify)
	#print(response.url)
	#print(response.text)
	if datatype == 'JSON' :
		#Returns JSON
		returnData=response.json()
	elif datatype == 'XML' :
		# Returns XML as a dict
		print(response.content)
		returnData = xmltodict.parse(response.content)['my_xml_tag3xxx']
	elif datatype == 'Text' :
		# Returns an array
		returnData =response.json()['_data']
	return returnData




print(showCmd('clock', 'Text')[0])


print(json.dumps(showCmd('dds debug peers', 'JSON'),indent=2, sort_keys=False))



## Log out and remove session


response = session.get(baseurl+"api/logout", verify=False)
jsonData = response.json()['_global_result']

if response.status_code == 200 :

	#remove
	token = jsonData['UIDARUBA']
	del sessionToken
	#print("Logout successful. Token deleted.")
else :
	del sessionToken
	sys.exit("Logout failed:")

If you prefer, I have shared a Postman collection for working with the basics.

Aruba CLI Quick Bits!

Just a quick post today to highlight a couple of my favorite ArubaOS v8 CLI commands of the week.

The first is show configuration diff <node A> <node B>. This handy tool lets you compare what’s different between two different hierarchy containers. Great for chasing down obscure config items.

The second is show references, followed by a profile type and name – it will tell you all the profiles that reference the one provided. Very handy if you’re trying to clean up cruft and want to find profiles that are abandoned and no longer useful, or if it won’t let you delete a profile because it is still in use (where it will annoyingly not actually tell you where)

That’s all for today!

Bluetooth Beacons for Location

It’s not uncommon for architects and interior designers to get on us wireless guys for cluttering up their aesthetic, so I always try to get on their good side whenever possible. They don’t tend to complain about “necessary” stuff like light switches and fire alarms, but for some reason, they never see network infrastructure as “necessary”.

I’m going to lay out a technical explanation about why we place BLE beacons where we do, while trying to be sensitive to the aesthetic considerations. (See also: Hiding In Plain Sight). Aruba’s best practices for beacon deployment are documented here: Location Beacon Deployment Guide – Meridian Platform Documentation (meridianapps.com)

  1. Near The Floor. Sometimes, the wall finish is such that using adhesives or screws is practically a capital offense. It could be fabric, glass, metal, or whatever. At that point, you’ll usually have a baseboard upon which to mount them, just make sure it’s not going to get damaged by floor cleaning processes. Another reason to go close to the floor is to use the floor to create a shadow when deploying near an open hole like an atrium or a stairwell. You don’t generally want your beacons from one floor being visible on another, as that can really confuse a map that is not aware of floor holes. It’s also important to always place a beacon near every “portal” at each floor (doors from stairwells, elevator lobbies, and so forth) so the app knows when you’ve changed floors and to switch maps when navigating.
  2. On The Wall. I’ll explain in a minute why you want your beacons as close to the user as possible. What this generally means is that you want to go on the wall most of the time. In terms of spacing, you should generally be within 3-4m of a beacon anywhere in the building. Being closer to your beacons will improve accuracy, and greater beacon density will reduce latency (but only to a point, it typically takes 2-5 seconds for the app to get a new fix because it has to listen for all the beacons it can hear) .
  3. On The Ceiling. Suboptimal, but works in a pinch. Suboptimal mainly because even standing directly under the beacon, you’re usually at least 2m away from it.

Now for the engineering reasons behind all this: It all comes back to the old friend that wireless engineers everywhere love and cherish: free space path loss. Except here, we’re making constructive use of it.

Determining distance based on triangulation of beacon RSSI is optimal within about 0-4 metres due to the inverse square law of RF propagation. Typically, the calibrated output of the beacons is 0dBm (1mW). They operate in the 2.4GHz band on a 2MHz advertisement channel tucked between Wi-Fi channels 1 and 6, as well as one just past channel 11, and another one just below channel 1. My colleague Joel Crane explained BLE frequencies in 60 seconds (when he was at Mist, now he’s back at Metageek)

There’s also some variability between receiver devices in terms of their sensitivity and even based on internal antenna configuration and how the device is held/oriented, so let’s just assume it’s +/- 3dB for the purposes of this example because it makes the math simpler.

Free Space Path Loss, Illustrated by my good friend and colleague François at Semfio Networks

When the receiving device sees a BLE beacon, it then determines its distance from that beacon based on the RSSI (and uses the beacon’s ID to correlate it with the device’s placement on the map). When it sees a beacon at -35dBm, it knows it’s under a metre away. If it sees it at -55dBm, that could be anywhere between 4 and 8 metres away. So the farther you get from the beacon, the wider that margin of error becomes. Any walls that get between can also add 3dB or more of attenuation depending on the materials used. (just like they do with Wi-Fi, since we’re dealing with the same RF frequencies, just at about 1/1000 the power).

Below 1 metre, every time you halve the distance you gain 6dB – so 50cm would be -34dB, 25cm would be -28dB, 12.5cm would be -22dB, and now we’re getting really close to the beacon, and it’s already lost 99% of the transmitted power… Also worth noting here that when you mount them on a metal surface, you gain a little bit back, but if your surface is less than one wavelength (~12cm) wide, the math gets tricky and I won’t go into it here.

What this means for placement is that you want to get them as close to the receiver as possible, usually within 4m. This generally means at a height of 1-2m on walls, and between 40 and 55 inches is ideal, since it avoids hips, shoulders, and carts which could damage the beacon or outright rip it off the wall (and collisions with a hip or shoulder is not fun for the owner of the hips and shoulders either… ask me how I know). They can also be placed on ceilings, but as I pointed out previously, in an office building, that usually means you’re never going to get closer than ~2m to the beacon even if you’re standing directly underneath it.  Beacons near the floor are about a meter closer to the receiving device than the ceiling would.

In a recent deployment, the basic beacon grid (best practice: 10m) was deployed on the structural column wraps, which were spaced about 12m apart. The gaps in the middle of the squares formed by 4 columns were filled in with AP based beacons (which isn’t always dead center due to some variability in the AP placement within those squares). In the common central areas on each floor, we had to fill some of those gaps with additional beacons to get within about 4-5m and provide greater accuracy due to the various obstructions, as well as place beacons near the areas where traffic enters and exits those spaces.

In locations where there are particular aesthetic concerns, it is usually possible to paint the beacons and their mounts to match, as long as the paint does not contain any metallic materials (lead, aluminum powder, gold leaf, iron oxide, etc.), or you can apply a vinyl skin. This also applies to access points. Check with your vendor to make sure it will not void the warranty (as it tends to do with many vendors). You can also often find snap-on paintable covers for indoor APs if you don’t want to paint them directly.

Applying this to design methodologies

So how do you plan out a beacon deployment? Same way you generally would with any RF planning. Ekahau supports modeling BLE access points (although it cannot survey them, much to my annoyance). At this point you want to set your BLE coverage requirements to the RSSI required for the most distance you want to be from the beacon, which is -52dBm, and you want to make sure that within that coverage level, you can always hear at least 3 beacons.

(Illustration coming as soon as I can mock this up in Ekahau and grab some screen shots. )


Location, Location, Location, Part Deux

Yesterday, I posted about leveraging the Meridian API to get a list of placemarks into a CSV file. Today, We’ll take that one step further, and go the other way – because bulk creating/updating placemarks is no fun by hand.

For instance, in this project, I created a bunch of placemarks called “Phone Room” (didn’t know what else to call them at the time). There were several of these on multiple floors. To rename them in the Meridian Editor, I would have to click on each one, rename it, and save.

So, once I got guidance on what they were to be called, I fired up Excel and opened up the CSV that I created yesterday, and made the changes in bulk, and then ran them back into Meridian the other way – I changed the name, the type, and the icon:

Sounds easy, right?

Not so much. I ran into some trouble when I opened it in excel, and all my map IDs looked like this:

This is because Excel is stupid, but trying to be smart. It sees those as Really Big Numbers, and converts them to scientific notation, because the largest it can store is a 15-digit integer. And of course, these map IDs are… 16 digits. But I can’t just convert them back as integer number formatting because it then takes the first 15 digits and adds a zero. This, of course, breaks the whole thing. Excel will also do some similar shenanigans when parsing interface names from AOS or Cisco that look like “2/1/4”, which excel assumes is a date, because excel assumes everything that looks vaguely numeric must be a number, because it is a spreadsheet after all, and spreadsheets are made for numbers, even if people abuse them all the time as a poor substitute for a database.

So, this means you either have to make the changes directly in the CSV with a text editor, or find another sheets application that doesn’t mangle the map IDs. Fortunately, for us Mac users, Apple’s spreadsheet application (“Numbers”) handles this just fine. So make the changes, export to CSV, and run it all back into the API. (you can also name it as a .txt and manually import into Excel and specify that as a text column, but that’s tedious, which is what we’re trying to avoid)

I’ve built a bit of smarts into this script, since I don’t want to break things on Meridian’s end (although Meridian does a great job of sanity checking and sanitizing the input data from the API). The first thing it does is grab a list of available maps for the location. Then it goes through all the lines in the spreadsheet, converts them to the JSON payload that Meridian wants, and checks to see if there’s existing data in the id field. If there is, it assumes that this is an update (it does not, however, check to see if the data already matches the existing placemark since Meridian does that already when you update). If there is no ID, it assumes that this is a new object to be created, and verifies that it has the minimum required information (name, map, and x/y position), and in both cases, checks to make sure the map data in the object is a map ID that exists at this location (this is how I found out that excel was mangling them)

Running the script spits out this for each row in the CSV that it considers an update:

Update object id XXXXXXXXXXXXXXX_5666694473318400
object update passed initial sanity checks and will be placed on 11th Floor.
Updating existing object with payload:
{
  "id": "XXXXXXXXXXXXXXX_5666694473318400",
  "name": "Huddle Space",
  "map": "XXXXXXXXXXXXXXX",
  "type": "conference_room",
  "type_name": "Conference Room",
  "color": "f2af1d",
  "x": "177.20516072322900",
  "y": "597.6184874989240",
  "latitude": 41.94822,
  "longitude": -87.65552,
  "area": "",
  "description": "",
  "phone": "",
  "email": "",
  "url": ""
}
Object ID XXXXXXXXXXXXXXX_5666694473318400 named Huddle Space updated on map XXXXXXXXXXXXXXXX

If it doesn’t find an id and determines that an object needs to be created, it goes down like this:

Create new object:
object create passed initial sanity checks and will be placed on 11th Floor.
Creating new object with payload:
{
  "name": "Test Placemark",
  "map": "XXXXXXXXXXXXXXXX",
  "type": "generic",
  "type_name": "Placemark",
  "color": "f2af1d",
  "x": "400",
  "y": "600",
  "latitude": "",
  "longitude": "",
  "area": "",
  "description": "",
  "phone": "",
  "email": "",
  "url": "https://arubanetworks.,com"
}
Object not created. Errors are
{
  "url": [
    "Enter a valid URL."
  ]
}

As you can see here, I made a typo in the URL field, and the data returned from the API call lists the fields that contain an error. If the call is successful, it returns an ID, which the script checks for to verify success. The response from a successful API call looks like this :

{
  "parent_pane": "",
  "child_pane_ne": "",
  "child_pane_se": "",
  "child_pane_sw": "",
  "child_pane_nw": "",
  "left": -1,
  "top": -1,
  "width": -1,
  "height": -1,
  "next_pane": null,
  "next_id": "5484974943895552",
  "modified": "2021-08-11T15:12:52",
  "created": "2021-08-11T15:12:52",
  "id": "XXXXXXXXXXXXXXXX_5484974943895552",
  "map": "XXXXXXXXXXXXXXXX",
  "x": 400.0,
  "y": 600.0,
  "latitude": 41.94822,
  "longitude": -87.65552,
  "related_map": "",
  "name": "Test Placemark",
  "area": null,
  "hint": null,
  "uid": null,
  "links": [],
  "type": "generic",
  "type_category": "Markers",
  "type_name": "Placemark",
  "color": "88689e",
  "description": "",
  "keywords": null,
  "phone": "",
  "email": "",
  "url": "https://arubanetworks.com",
  "custom_1": null,
  "custom_2": null,
  "custom_3": null,
  "custom_4": null,
  "image_url": null,
  "image_layout": "widescreen",
  "is_facility": false,
  "hide_on_map": false,
  "landmark": false,
  "feed": "",
  "deep_link": "com.arubanetworks.aruba-meridian://ZZZZZZZZZZZZZZZZ/placemarks/XXXXXXXXXXXXXXXX_5484974943895552",
  "is_disabled": false,
  "category_ids": [],
  "categories": []
}

Of course, the script doesn’t have to spit out all that output, but it’s handy to follow what’s going on. Comment out the print lines if you want it to shut up.

So, without further ado, here’s the script. This has not been debugged extensively, so use at your own risk. If you break your environment, you probably should have tested it in the lab first.

#!/usr/bin/python3

# Aruba Meridian Placemark Import from CSV
# (c) 2021 Ian Beyer
# This code is not endorsed or supported by HPE

import json
import requests
import csv
import sys

auth_token = '<please insert a token to continue>'
location_id = 'XXXXXXXXXXXXXXXX'

baseurl = 'https://edit.meridianapps.com/api/locations/'+location_id


header_base = {'Authorization': 'Token '+auth_token}

def api_call(method,endpoint,headers,payload):
	response = requests.request(method, baseurl+endpoint, headers=headers, data=payload)
	resp_json = json.loads(response.text)
	return(resp_json)

#File name argument #1
try:
	fileName = str(sys.argv[1])
except:
	print("Exception: Enter file to use")
	exit()


# Get available maps for this location for sanity check
maps={}

# print("Available Maps: ")
for floor in api_call('GET','/maps',header_base,{})['results']:
 	maps[floor['id']] = floor['name']
# 	print (floor['name']+ ": "+ floor['id'])



import_data_file = open(fileName, 'rt')

csv_reader = csv.reader(import_data_file)
count = 0

objects = []

csv_fields = []

for line in csv_reader:
	placemark = {}

	# Check to see if this is the header row and capture field names
	if count < 1 :
		csv_fields = line
	else:
		# If this is a data row, capture the fields and put them into a dict object
		fcount = 0
		for fields in line:
			objkey = csv_fields[fcount]
			placemark[objkey] = line[fcount]
			fcount += 1

		# Add the placemark object into the object list
		objects.append(placemark)
	count +=1

#print(json.dumps(objects, indent=2))

import_data_file.close()

#Check imported objects for create or update. If it has an ID, then update.
for pm in objects:
	task = 'ignore'
	if pm['id'] == "" :
		task = 'create'
		print("Create new object: ")
		# Delete id from payload
		del pm['id']
	else:
		task = 'update'
		print("Update object id "+ pm['id'])


	# Remove floor from payload as it is not valid
	del pm['floor']

	# Check to see if the basics are there before making the API calls
	reject = []
	if pm['x'] == "":
		reject.append("Missing X coordinate")
	if pm['y'] == "":
		reject.append("Missing Y coordinate")
	if pm['map'] == "":
		reject.append("Missing map id")
	if pm['name'] == "":
		reject.append("Missing object name")

	if len(reject)>0:
		#print("object "+ task + " rejected due to missing required data:")
		for reason in reject:
			print(reason)
		task = 'ignore'
	else:
		if maps.get(pm['map']) == None:
			print ("Map ID "+pm['map']+" Not found in available maps. Object will not be created. ")
			task = 'ignore'
		else:
			print("object "+ task + " passed initial sanity checks and will be placed on "+ maps[pm['map']] +".")


	#print ("Object Payload:")
	#print (json.dumps(pm, indent=2))

	method = 'GET'

	if task == 'create':
		#print ("Creating new object with payload:")
		#print (json.dumps(pm, indent=2))
		method = 'POST'
		ep = '/placemarks'
		result = api_call(method,ep,header_base,pm)

		if result.get('id') != None:
			print ("Object ID "+result['id']+" named "+result['name']+ " created on map "+ result['map'])
		else:
			print ("Object not created. Errors are")
			print (json.dumps(result, indent=2))
	if task == 'update':
		#print ("Updating existing object with payload:")
		#print (json.dumps(pm, indent=2))
		method = 'PATCH'
		ep = '/placemarks/'+pm['id']
		result = api_call(method,ep,header_base,pm)

		if result.get('id') != None:
			print ("Object ID "+result['id']+" named "+result['name']+ " updated on map "+ result['map'])
		else:
			print ("Object not updated. Errors are")
			print (json.dumps(result, indent=2))


baseurl = 'https://edit.meridianapps.com/api/locations/'+location_id


header_base = {'Authorization': 'Token '+auth_token}

def api_call(method,endpoint,headers,payload):
	response = requests.request(method, baseurl+endpoint, headers=headers, data=payload)
	resp_json = json.loads(response.text)
	return(resp_json)


# Get available maps for this location for sanity check
maps={}

# print("Available Maps: ")
for floor in api_call('GET','/maps',header_base,{})['results']:
 	maps[floor['id']] = floor['name']
# 	print (floor['name']+ ": "+ floor['id'])


# I've hard coded the file name here because I'm lazy.

import_data_file = open('placemarks_update.csv', 'rt')

csv_reader = csv.reader(import_data_file)
count = 0

objects = []

csv_fields = []

for line in csv_reader:
	placemark = {}

	# Check to see if this is the header row and capture field names
	if count < 1 :
		csv_fields = line
	else:
		# If this is a data row, capture the fields and put them into a dict object
		fcount = 0
		for fields in line:
			objkey = csv_fields[fcount]
			placemark[objkey] = line[fcount]
			fcount += 1

		# Add the placemark object into the object list
		objects.append(placemark)
	count +=1

#print(json.dumps(objects, indent=2))

import_data_file.close()

#Check imported objects for create or update. If it has an ID, then update.
for pm in objects:
	task = 'ignore'
	if pm['id'] == "" :
		task = 'create'
		print("Create new object: ")
		# Delete id from payload
		del pm['id']
	else:
		task = 'update'
		print("Update object id "+ pm['id'])


	# Remove floor from payload as it is not valid
	del pm['floor']

	# Check to see if the basics are there before making the API calls
	reject = []
	if pm['x'] == "":
		reject.append("Missing X coordinate")
	if pm['y'] == "":
		reject.append("Missing Y coordinate")
	if pm['map'] == "":
		reject.append("Missing map id")
	if pm['name'] == "":
		reject.append("Missing object name")

	if len(reject)>0:
		#print("object "+ task + " rejected due to missing required data:")
		for reason in reject:
			print(reason)
		task = 'ignore'
	else:
		if maps.get(pm['map']) == None:
			print ("Map ID "+pm['map']+" Not found in available maps. Object will not be created. ")
			task = 'ignore'
		else:
			print("object "+ task + " passed initial sanity checks and will be placed on "+ maps[pm['map']] +".")


	#print ("Object Payload:")
	#print (json.dumps(pm, indent=2))

	method = 'GET'

	if task == 'create':
		#print ("Creating new object with payload:")
		#print (json.dumps(pm, indent=2))
		method = 'POST'
		ep = '/placemarks'
		result = api_call(method,ep,header_base,pm)

		if result.get('id') != None:
			print ("Object ID "+result['id']+" named "+result['name']+ " created on map "+ result['map'])
		else:
			print ("Object not created. Errors are")
			print (json.dumps(result, indent=2))
	if task == 'update':
		#print ("Updating existing object with payload:")
		#print (json.dumps(pm, indent=2))
		method = 'PATCH'
		ep = '/placemarks/'+pm['id']
		result = api_call(method,ep,header_base,pm)

		if result.get('id') != None:
			print ("Object ID "+result['id']+" named "+result['name']+ " updated on map "+ result['map'])
		else:
			print ("Object not updated. Errors are")
			print (json.dumps(result, indent=2))

It’s also worth noting here that the CSV structure and field order isn’t especially important since it reads in the header row to get the keys for the dict – as long as you have the minimum data (name/map/x/y) you can create a table of new objects from scratch. Any valid field can be used (although categories requires some additional structure)

Questions/comments/glaring errors? Comment section is right here. Scripts on this page can also be found on github.

Location, Location, Location

It seems fitting that the week in which I became the first to pass the CWIDP (Certified Wireless IoT Design Professional) certification would be one where I happened to be onsite doing a BLE location project with Aruba Meridian.

While the web based editor is great, it is mildly annoying that one of the things it can’t do is copy and paste placemarks between floors, which would be really handy when you’re deploying an office building that has almost the same layout on every floor. For this, you have to dig into the Meridian API.

By using the API, you can spit out a list of placemarks in JSON (easiest way to do this is in Postman, with a GET to {{BaseURL}}/locations/{{LocationID}}/placemarks), grab the JSON objects for the placemarks you wish to copy from the output, update the fields in the JSON for which map ID they need to go on, and any other data, and then make a POST back to the same endpoint with a payload containing the JSON list of objects you want to create. Presto, now you’ve been able to clone all the placemarks from one floor to another.

Note that point coordinates are relative to the map image – So cloning from one map to another can bite you in the rear if they’re not properly aligned. (If you want to get really clever, You could manually create a placemark on every floor whose sole purpose is to align each floor in code – much like an alignment point in Ekahau, when you generate a placemark list, you can calculate any offsets between them and apply those to coordinates before sending them back to the API. But this trick could (and probably will) be a whole post of its own.

The structure of a placemark object from a GET:

       {
            "parent_pane": "",
            "child_pane_ne": "",
            "child_pane_se": "",
            "child_pane_sw": "",
            "child_pane_nw": "",
            "left": -1,
            "top": -1,
            "width": -1,
            "height": -1,
            "next_pane": null,
            "next_id": "XXXXXXXXXXXXXXXXXX",
            "modified": "2021-08-06T22:57:29",
            "created": "2021-08-06T15:28:13",
            "id": "XXXXXXXXXX_XXXXXXXXXX",
            "map": "XXXXXXXXXXXXXXXX",
            "x": 2152.0189227788246,
            "y": 499.59448403469816,
            "latitude": 41.94822,
            "longitude": -87.65552,
            "related_map": "",
            "name": "Pitch Room",
            "area": "2132.722,480.101,2228.177,480.498,2230.003,634.737,2132.412,634.722",
            "hint": null,
            "uid": null,
            "links": [],
            "type": "conference_room",
            "type_category": "Office",
            "type_name": "Conference Room",
            "color": "596c7c",
            "description": null,
            "keywords": null,
            "phone": null,
            "email": null,
            "url": null,
            "custom_1": null,
            "custom_2": null,
            "custom_3": null,
            "custom_4": null,
            "image_url": null,
            "image_layout": "widescreen",
            "is_facility": false,
            "hide_on_map": false,
            "landmark": false,
            "feed": "",
            "deep_link": null,
            "is_disabled": false,
            "category_ids": [
                "XXXXXXXXXXXXXXXX"
            ],
            "categories": [
                {
                    "id": "XXXXXXXXXXXXXXXX",
                    "name": "Conference Room"
                }
            ]
        }

However, when creating a new placemark, you don’t need all these fields… The only objects that are absolutely required are map, type, x, and y (I haven’t tried sending an id along with a POST, so I don’t know if it will ignore it or reject it.) I’ve used Postman variables here for map and name, because then I could just change those in the environment variables and resubmit to put on multiple floors. The best part about the POST method is that the payload doesn’t just have to be a single JSON object, it can be a list of them, by simply putting multiple objects inside a list using square brackets.

{
            "map": "{{ActiveMapID}}",
            "x": 2152.0189227788246,
            "y": 499.59448403469816,
            "latitude": 41.94822,
            "longitude": -87.65552,
            "related_map": "",
            "name": "{{ActiveFloor}} Pitch Room",
            "area": "2132.722,480.101,2228.177,480.498,2230.003,634.737,2132.412,634.722",
            "hint": null,
            "uid": null,
            "links": [],
            "type": "conference_room",
            "type_category": "Office",
            "type_name": "Conference Room",
            "color": "596c7c",
            "description": null,
            "keywords": null,
            "phone": null,
            "email": null,
            "url": null,
            "custom_1": null,
            "custom_2": null,
            "custom_3": null,
            "custom_4": null,
            "image_url": null,
            "image_layout": "widescreen",
            "is_facility": false,
            "hide_on_map": false,
            "landmark": false,
            "feed": "",
            "deep_link": null,
            "is_disabled": false,
            "category_ids": [
                "5095323364098048"
            ],
            "categories": [
                {
                    "id": "5095323364098048",
                    "name": "Conference Room"
                }
            ]
        }

And if you want to update an existing placemark, simply make a PATCH call to the API with the existing placemark’s ID, and whatever fields you wish to update. Like with the POST call, you can send a payload that is a list of objects This is a great way to batch update URLS or names.

It may also come in handy to generate a list of all the placemarks at a given location. So I threw together a handy little python script that will spit it out into a CSV (and will also look up the map ID and get the floor number for easy reference).

#!/usr/bin/python3

# Aruba Meridian Placemark Export to CSV
# (c) 2021 Ian Beyer
# This code is not endorsed or supported by HPE

import json
import requests
import csv
import sys

auth_token = 'Please Insert Another Token to continue playing'
location_id = 'XXXXXXXXXXXXXXXX'

baseurl = 'https://edit.meridianapps.com/api/locations/'+location_id


header_base = {'Authorization': 'Token '+auth_token}

def api_get(endpoint,headers,payload):
	response = requests.request("GET", baseurl+endpoint, headers=headers, data=payload)
	resp_json = json.loads(response.text)
	return(resp_json)

#File name argument #1
try:
	fileName = str(sys.argv[1])
except:
	print("Exception: Enter file to use")
	exit()

maps={}

for floor in api_get('/maps',header_base,{})['results']:
	maps[floor['id']] = floor['name']

beacons=[]

# Iterate by floor for easy grouping -
for flr in maps.keys():
	bcnlist=api_get('/beacons?map='+flr,header_base,{})
	# NOTE: If bcnlist['next'] is not null, then there are additional pages - this doesn't process those yet.
	for bcn in bcnlist['results']:
		# Add floor name column for easier reading.
		bcn['floor']=maps[bcn['map']]
		beacons.append(bcn)



data_file = open(fileName, 'w')
csv_writer = csv.writer(data_file)
count = 0

csv_fields = beacons[0].keys()

print(csv_fields)

csv_writer.writerow(csv_fields)

#print(placemarks)
for bcn in beacons:
	data=[]
	for col in csv_fields:
		data.append(bcn[col])
	# Writing data of CSV file
	csv_writer.writerow(data)
	count += 1
data_file.close()

print ("Exported "+str(count)+" beacons. ")

Once you have this list in a handy spreadsheet form, then you can make quick and easy edits, and then run the process the other way.

Scripts on this page can also be found on github.

Auditorium Density/Capacity Planning for Wi-Fi

I was recently tasked to do a design for a small 450-seat auditorium and provide capacity and throughput numbers. Those who have known me for a while probably know that this type of auditorium is kind of a sweet spot for me, having done designs for a number of church sanctuaries of various sizes. In this post, I’m going to get into the nitty gritty details of making sure that not only does an auditorium have sufficient wireless capacity to meet the connectivity needs of the space, but also to have realistic expectations of what the performance will look like in order to build sufficient backend networking infrastructure without needlessly overbuilding it.

Auditorium design should be simple, right? Here’s how I have seen it done, way too many times to count:

  • Count up how many seats there are, divide by some number of seats per AP (usually based on the AP data sheet), and then figure out how many APs that gets you.
  • Figure out your capacity by taking the AP throughput (again from the data sheet) and multiplying that by the number of APs. Then divide that capacity so you know how much bandwidth you get per person.
  • Try to do a predictive model using Ekahau, to place the APs in exactly the right spot, and without ever surveying the space.

So let’s say you have a 1000-seat sanctuary where you want to use a Ubiquiti Unifi HD access point because that’s what your colleagues on social media recommended. The vendor data sheet says that you can do 500 concurrent clients per AP, so that means two APs (let’s say three just for redundancy), and each AP can do 2533 Mbps . So you should be able to get 7.6 Gbps, divided by a thousand seats, which gives you 7.6 Mbps per client, and you’ll need a 10 Gbps switch. Easy job, under a thousand bucks for the gear. And then when you fill the room up, the whole thing collapses, everyone is complaining about how it doesn’t work, and you’re left wondering why.

Because that’s not how any of this works.

For starters, never believe the data sheet. That’s marketing, not engineering. There is no amount of marketing copy that can ever overcome the fundamental laws of physics. So let’s pick this design apart, piece by piece… (yes, I’m gonna pick on Ubiquiti for a bit here, because their UniFi brand is often thrown about as a solution to all your wireless problems by people who don’t actually understand how wifi works – but these principles apply to any vendor – no vendor has a magic bullet, you still have to do the engineering)

Caution: Math (or at least arithmetic) ahead. Don’t say I didn’t warn you. Hope you paid attention in school.

The Engineering

doin it rong:

Error #1: AP Throughput

This is probably one of the most egregious attempts by the marketing department to ignore reality. This number published on the data sheet (and also frequently wielded by consumer AP marketing) is completely bogus, but marketing loves to show off big numbers. It is typically created by taking the maximum possibly PHY rate (more on that in a second) on each radio, and adding them together. (why? you can’t aggregate client radios like that!). The number “2533 Mbps” comes from adding the max PHY on 5GHz (1733 Mbps) with the max PHY on 2.4 GHz (800 Mbps)

What is the PHY rate?

It is the speed at which an individual wireless frame is transmitted over the air. It can vary from one frame to the next, one client to the next, and is highly dependent on RF conditions. What goes into the PHY:

  • Channel Width
  • Number of MIMO Spatial Streams
  • Guard Interval
  • Modulation and Coding Scheme (MCS)
  • Resource Unit Size (in 802.11ax)

A table of all possible PHY rates (and the math behind them) can be found at the ever-handy mcsindex.com.

And here’s where this speed number comes flying apart. In order to achieve this maximum PHY, you need to use an 80 MHz channel (40MHz on 2.4 GHz, which is a monumentally bad idea), a short guard interval, 256QAM with 5/6 coding (which typically requires signal:noise ratio of over 40dB to achieve), and FOUR spatial streams. Given that the vast majority of devices in the wild only support two spatial streams (and the only 4SS client device is a desktop card), it’s safe to say that you’re never going to even come close to that maximum PHY rate. And even then, wireless is a half-duplex shared medium where only one device can talk on a channel at a given time. So even if you were to somehow get that max PHY, your throughput for a single device might be about half that at best. And as you add more clients, it gets even lower. Remember: Every TCP segment results in FOUR transmissions on the wireless: The segment itself, the layer 2 acknowledgement of that frame, then the TCP acknowledgement, and then the layer 2 ACK of the Layer 3 ACK.

Error #2: Constrained Resources

The most important thing to remember when doing dense Wi-Fi deployments is that your most constrained resource is not bandwidth, it’s airtime (the amount of time a given device gets to send data). In order to maximize airtime sharing, you want devices to get on, say their piece as fast as possible, and get off. This also means you want them to use as little spectrum as possible to do so. The key to supporting more client devices is to minimize their use of spectrum and maximize spectrum reuse (where multiple access points use the same frequency in a way that they don’t interfere with each other, which is a lot harder than it sounds)

Ultimately, the only way you can add capacity to a space is to add spectrum. I’ll demonstrate in a minute how channel width matters a lot less than one might expect.

And let’s not forget that while this AP advertises throughput of 2533Mbps, it only has a 1Gbps port to connect to the switch…

Error #3: Assumptions

We’ve probably all heard the old saw about what happens when you assume something. It still holds true in wireless engineering. An auditorium may have a thousand seats, but it’s also vitally important to understand how that space is used, what kinds of devices there are, how many people, etc. Broadly speaking, an auditorium will “feel” packed and completely full when there are about two thirds of the seats occupied. But if you’re selling reserved tickets, it’s entirely possible to fill every one of those seats. And what devices are those people bringing? There’s a big difference between a 1000-seat auditorium that has 700 people in it for weekly worship and when that same space has 500 people in it attending a conference, or when 1000 people are there watching a film or a performance. Ultimately you want to plan around the most likely intensive usage scenario, which is going to typically be a conference (although I’ve done plans that assume the most intensive scenario is something completely insane like an Apple product launch).

Planning (Doing it right)

So let’s run the numbers for this fictitious auditorium that seats a thousand people. broadly speaking, this room is going to be of such a size that no matter where you place the AP, it’s going to light up the whole room. At this size, you’re not going to get any frequency reuse, even with directional antennas. If you were hoping to use the crowd to attenuate the signals and get reuse that way while putting your access points under the seats, stop now – Aruba (who have tested and deployed a whole lot of venues of all sizes) do not recommend going under the seat in any venues under about 10,000 seats unless you simply don’t have a means to go overhead.

Since we’re not getting any channel reuse, this gives us a grand total of 500 MHz of spectrum to work with, plus another 60 MHz in the 2.4GHz band – but it’s probably best to simply forget about 2.4 GHz in an auditorium because a bunch of A/V stuff is using it (and likely ill behaved stuff at that), not to mention the hundreds of wearables the people in the seats have, which will light up the entire Bluetooth channel space. So let’s go with 5 GHz for now. I’ll talk about 6GHz later.

In the 5 GHz band, we have:

  • 25 channels at 20 MHz (500 MHz)
  • 12 channels at 40 MHz (480 MHz)
  • 6 channels at 80 MHz (480 MHz)
  • 2 channels at 160 MHz (320 MHz)
5 GHz Channel Allocation (Credit: Jennifer Minella, SecurityUncorked.com)

I’m gonna go ahead and say it: Don’t waste your time with 160MHz. Sure, you get some sick PHY rates with it, but device support is limited. And don’t forget that weather radar can remove 3 channels at 20 MHz, 2 channels at 40 MHz, and 1 channel at both 80 and 160 MHz – but unless you’re very near a radar site, and the radar is penetrating from outside, you can use these channels without any issue. I’ve even seen these used inside airport terminals within view of the TDWR. Use these channels right up until you can’t.

So how do you choose what channel width to use? The only difference is whether you have more devices talking at once, at lower speeds, or fewer talking at once, but doing so at higher speeds. In the end, it doesn’t make that much of a difference to your throughput, and then it becomes a decision of how many APs you can physically put in the space (and their specific placement in a small auditorium is not too picky, since every AP lights up the entire space). 12 APs is a good flexible middle ground here, because you can do 12x40MHz channels. or 24x20MHz if the AP supports dual 5GHz radios (such as the Aruba AP-340 or AP-550 series access points), or 6x80MHz and leave the other 6 as spectrum monitors. Or adapt as needed.

Let’s now plan on a full conference load of 500 people, who each brought a laptop, a smartphone, and a tablet. and will be evenly distributed throughout the room (because elbow room and personal space). The tablet and the phone will be doing typical low-usage background stuff while the laptop will be doing much heavier usage, let’s say 1 gigabyte per hour (which is roughly equivalent to a 2Mbps video stream – I’m thinking this is something like the Church IT Network conference and they’re all geeks doing geek stuff), and that about 3/4 of them are active, the rest have shut their devices off to minimize distraction. I’m also going to plan on these being 2SS MIMO devices, since that’s the overwhelming majority of what’s out there.

So here’s the breakdown, assuming most clients link up at MCS7 with a standard Gaussian distribution on either side. We’re also assuming a 50% net ratio of usable throughput (goodput) to PHY speed. Duty cycle is how much of the available airtime is used for this load – you want to try and stay under about 60% to accommodate for neighbor interference, etc. Much above that and performance really starts to suffer. These calculations are based on an excel sheet that I have, but it’s a little rough around the edges, so I haven’t shared it here.

24x20MHz12x40MHz6x80MHz
Devices113011301130
GB/Hour400400400
Available Throughput156016201755
Duty Cycle57%55%50%
Average Throughput per client1.38 Mbps1.43 Mbps1.55 Mbps

And this is where things get a bit counterintuitive (as they often do with Wi-Fi): You’re slightly better off here going with fewer APs at 80 MHz than you are with more APs at 20 MHz – but if you lose an AP or a channel due to failure or radar hit, you lose a lot more capacity when using the wider channels. In any case, you can see that all you actually need for this room is a gigabit switch with a 10G uplink, and a decently fat pipe to the internet. You also need at least a /21 IP address space (but probably a good idea to go to /20 or even /19 to accommodate for MAC randomization). You also want to plan on sufficient AP capacity outside the space for devices to transition to during breaks and whatnot, but they won’t need nearly as much airtime capacity as those devices are not going to be using it as heavily as the laptops.

The Math

Input data:
  • Infrastructure:
    • Area Population (Head Count) – the number of people in the room. Distribution Curve: Normal/Gaussian
    • Number of access points (self-explanatory)
    • Channel Width (2.4GHz, 5 GHz) (Not directly used in calculations, only in determining link speed input)
  • Client Devices:
    • Wifi Devices per person (Distribution: triangular)
    • Gross Take Rate (how many people using wifi (Gaussian)
    • % Devices on 5GHz (if using both bands)
  • Client Activity Modes: (activity per hour, in MB)
    • High/Medium/Low (Gaussian)
  • Activity Distribution (percentage of traffic in each mode, Gaussian)
  • Link Parameters (I shoot for the MCS7 values on 2SS – but what you can realistically expect will also be a function of how far the AP is from the seats, which is a factor in tall rooms):
    • 2.4 GHz Link Speed (Mbps, median speed, triangular)
    • 5 GHz Link Speed (Mbps, median speed, triangular)
    • TCP Net ratio (Goodput/Link speed, triangular)
Distribution Curves: a) Normal/Gaussian, b)Rectangular/Uniform, c) Triangular/Continuous, d) U-shaped/quadratic
Output Data:
  • Connected Devices: Headcount * Devices per person * Take Rate
  • Client Demand (MB/hr): (Sum of: (activity mode * activity percentage)) * headcount
  • Available Throughput (Mb/sec): AP count * Link Speed * Goodput Ratio
  • Duty Cycle: ((Client Demand * 8)/3600) / Available Throughput

You’ll also want to apply the distribution curves to all those values to establish your 95% confidence ranges. Hit me up if you want details..

You can also improve your airtime efficiency by narrowing the range of PHY speeds so as to keep extra slow clients from connecting and chewing up your airtime – This is accomplished by setting your basic and available data rates to a higher value such as 12 Mbps or 24 Mbps. Also, don’t forget that because any slice of airtime is at a premium, don’t go crazy with your SSIDs, to keep your beacon overhead under control even at the higher basic rates. You also don’t want to “hide” any SSIDs in order to keep your unassociated clients from chewing up airtime with probe requests that are trying to figure out if the hidden SSID is one they know about. You want as many devices in the room as you can get to associate to something, anything and shut up with the probes already. Even if it’s an open SSID that goes nowhere.

Caveats

It is worth noting here that artificially throttling client speeds will do more harm than good – the additional traffic overhead that comes with that eats up airtime like crazy. So don’t see this and think you should limit your client devices to 2Mbps in order to make sure the system doesn’t get overwhelmed – see Jim Palmer’s presentation “The Netflix Effect on Guest Wi-Fi” for why throttling client speeds doesn’t work the way you think it does.

These calculations also doesn’t factor in any airtime overhead from adjacent APs outside the space, which is one reason why you want to keep your airtime duty cycle under 60% and your goodput ratio to 50%. Once the system is deployed, you’ll want to validate in the field what they actually look like, which will give you a good idea of actual usage and how well the model predicted your capacity.

What about placement and directional antennas?

In an auditorium this size, it really doesn’t matter. Because no matter where the AP is or what antenna it has on it, it will light up the entire room, even at a low power setting like 10dBm. Don’t get me wrong, I’m a huge fan of using directional antennas to sculpt the RF footprint. But unless you’re dealing with a small stadium, you’re not going to get frequency reuse out of directional antennas anyway (and a directional antenna can actually cause you more trouble – if the hot spot of the signal is too narrow, even way off-axis you’ll still be above the -82dBm contention backoff threshold in most of the room due to reflections and how focused your antenna is). If you want a good visual of this, go find one of the lighting people and ask them to aim a lighting fixture with a narrow beam at a seating area, turn on only that light, and vary the brightness… You’ll get enough scattered light in most of the room to see where you’re going. Light is, after all, still electromagnetic energy, so your RF is going to behave in similar ways.

Because the APs light up the whole room, you can literally put them anywhere that’s convenient for installation or maintenance access (just don’t put them too close to each other). There are however some cases where you can (and probably should) use a directional antenna in an auditorium space:

Tall ceilings – if you’re stuck with mounting the APs on a ceiling that’s much more than about 10m from the seating area, use a directional – at that height, 90° is still going to cover the entire floor, and 60° likely will too (remember that antenna beam width is considered to be between the -3dB points on the antenna plot, and in a space like an auditorium, your functional beam width is going to be closer to between the -10dB points, and you’re going to get a lot of scatter from the back lobes of the antenna as well, something that Ekahau doesn’t model – but this multipath environment can ultimately help with MIMO.

Keeping the signal inside and the noise outside – this is another place where you might consider directional antennas – if your APs are near the perimeter of the space and there’s space outside that also has Wi-Fi, a directional antenna can keep the outside signals from causing contention, as well as keep the signal from spilling into the area outside and causing contention with the APs external to the room. It’s also probably a good idea when you’re building a new auditorium to build the shell of the room such that it has high attenuation between the outside and inside (tilt-up precast concrete panels are great for this, but there’s a case to be made for intentionally designing RF shielding into the walls. It probably doesn’t hurt to set the room to a different BSS color if you’re using 802.11ax – but I haven’t yet encountered this in the wild. Last year, I was working from someone else’s design in a cruise ship where there were no fewer than 40 APs in the ship’s theatre, which seated 750. These APs were not only using a 60° directional antenna, it was placed immediately behind an expanded metal mesh used to support acoustic treatment fabric. And yet even at the lowest power I thought I could get away with, that one AP was still lighting up the seats below (about 6m) at -60dBm… The back lobe of these antennas was bouncing off the steel structure of the ship, and the weakest spot in the room was directly on the center axis of the directional antenna. I ended up putting most of those APs in spectrum monitoring mode, and making notes for the next ship auditorium. Upside is that a steel ship gets GREAT frequency reuse elsewhere.

Aesthetics – Sometimes you just want to hide the APs – and in that situation, an external antenna can be easier to hide than a whole AP. But also bear in mind that most APs now also have BLE functionality, and the BLE antennas are still inside the APs even if the Wi-Fi antenna is external. So if BLE is a design consideration, keep that in mind. You can also hide APs (or antennas) by skinning them (printable automotive vinyl wrap is great for this), painting them (if the manufacturer allows this, just make sure you use nonmetallic paint), a paintable cover (Aruba offers matching paintable covers for almost all of its indoor APs) – I haven’t tried it, but I wouldn’t be surprised if you could also hydro-dip the covers or the radomes. You can also hide APs in an enclosure such as the Oberon 1019-RM or otherwise camouflage them (See previous post: Hiding In Plain Sight). But one thing you don’t want to do is put them all being the acoustic panels where they all have line of sight to each other, as this will screw with 802.11k as well as automatic channel/power algorithms like AirMatch. This is the same as putting your APs above the ceiling tiles.

What about 802.11ax?

802.11ax (“WiFi 6”) brings a few airtime efficiencies to the table, but that will mostly manifest itself with the low traffic clients that don’t need to use the full data payload of a frame. High traffic clients will typically use all the RUs available in a single transmission, so our airtime usage calculations should not assume any OFDMA gains. BSS coloring (see above) may also be useful.

What about MU-MIMO?

Even if you have devices that support it (rare in 802.11ac, required for 802.11ax), MU-MIMO frames don’t really happen all that often in the real world, so planning your capacity around being able to use it is not a great idea. If you can somehow get MU-MIMO, then you’ll see some more efficient airtime usage. Again, we can’t count on this, so our capacity calculations should assume it isn’t happening.

What about 6 GHz?

6 GHz is pretty simple – you get to add more lots more spectrum, which directly translates to more capacity/throughput. It seems likely at this point that most vendors will release some kind of tri-radio/tri-band access point that will simply add the ability to run a 6 GHz channel, so you would simply calculate the additional capacity as additional APs and swap them out when the APs become available. But also consider that client support may not be fully available for a few years, so when you run your calculations, do them for 5GHz only and then treat 6GHz as a supplemental capability. If you’re running a dozen 5 GHz APs with 40 MHz channels, you can use those same 12 APs with 80 MHz channels on 6 GHz and the higher throughput alone should encourage any 6 GHz capable client device to choose the 6 GHz connection. Band steering without the band steering.

6GHz Wi-Fi Spectrum (Image Credit: Wireless LAN Professionals)

What about 2.4 GHz?

Leave it. Pretend it doesn’t exist. An auditorium full of people is going to be chock full of Bluetooth signals from wearables and wireless earphones (not to mention an increasing number of hearing aids). There’s also a lot of A/V stuff that lives in 2.4 that you just don’t want to worry about either. If you’re unable to convince the theatrical engineers to integrate with your existing infrastructure, you may also want to leave one 20MHz channel on 5GHz for them (165 is easy). And you only gain 60 MHz of spectrum, at the expense of a lot of headache.

tl;dr

Planning your auditorium capacity isn’t just a matter of taking the vendor specs and multiplying it by a certain number of APs per seat. There’s much more detailed engineering and calculation involved, and if it’s not something you’re comfortable doing or you don’t understand the numbers, hire a pro who can do the engineering for you – it’s going to be a lot cheaper than buying the wrong thing several times over…

Additional Resources

Props and Shout-Outs

Thanks to the following people who contributed their expertise and knowledge to this post:

A nice cup of MoCA…

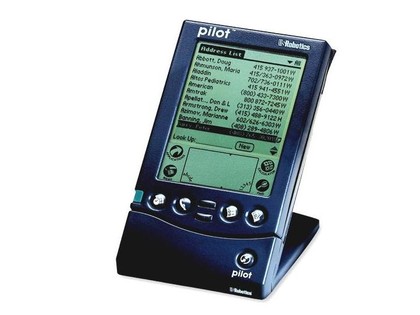

Let’s jump into the time machine and head back to the turn of the century (21 years ago, y’all… can you believe it?). It was a time when cable TV was king, and you could usually count on a cable outlet in almost every room of the house, when a cable TV package could easily come with half a dozen converter boxes, before the term “cord-cutter” struck fear into the hearts of cable executives. and when Netflix was an upstart DVD by mail company. This was also when a brand new technology called “Wi-Fi” had just showed up on the scene. Broadband internet (a whole 5 megabits!) was starting to find its way into homes served by cable TV, and it made dialup look severely lame. Usually these “cable modems” were hooked directly up to a single computer, either via USB, or via Ethernet if your computer was really snazzy. Often, these computers were directly connected to the internet with no firewall software, which led to all kinds of shenanigans.

Ah, those were the days.

If you had a home built around that time, chances are, the builder put coaxial cable into every room they could think of so you could have TV everywhere. And they’d usually string a daisy chained chunk of Cat5 for telephones. If they were really fancy, they would run each cable and phone outlet back to a central point where you could pick and chose where the signals went.

The challenge is that while technology changes every few years, the wiring in a house is generally put in place with little thought given to even the near future. In 2000, only the serious nerds (such as yours truly) had computers (plural) in their homes. The idea of the networked home and the Internet of Things was still a long way off.

If you were a nerd with computers (plural) and so fortunate as to have a home whose Cat5 phone cables were “home-run” back to a central interconnect (where they were usually all spliced together on a single pair for voice), you could reterminate them on both ends with a modular jack and use them for Ethernet (the idea of a router at home with NAT was still pretty new back then as well). In most cases, the runs were short enough that when gigabit Ethernet started showing up, you could still make the Cat5 work.

Recently, I had to figure out how to connect up a bunch of access points in a few homes that were built in the 1999-2000 time frame. One is the rental I just moved into, and the other is a moderately sized home owned by a client who has found himself and his family working from home a lot more lately, just like the rest of us.

My home was wired to nearly every room with home run Cat5 and coax (lucky me!). Since I have buckets full of Cat5e jacks, it was a pretty simple swap on both ends and I got gigabit. Didn’t require much effort, and thankfully didn’t require causing any damage to the rental house, which the landlord tends to get cranky about.

The client’s home, on the other hand, had daisy chained telephone line and coaxial cable throughout. And since it’s a higher end home, running ethernet cable to each room is a non-starter (not to mention expensive and disruptive). And, of course, the cable modem/router/wireless/waffle iron/juicer/vacuum combo device provided by the cable company is as far across the house from the home office as you can possibly get without actually putting it in the neighbors’ house. Cable installers love outside walls, which are about the worst possible place to put a wireless access point. Zoom calls can get a little frustrating and embarrassing when you’re the presenter and your connection sucks…

So how to get a decent connection up to the office and elsewhere in the client’s house to blanket it with wifi? Thankfully, 20 years of innovation has happened, and the chip makers and the cable companies got together to solve this problem, because they needed to deliver services over IP within the homes as well. What they came up with is the deliciously named “MoCA“, which stands for “Multimedia over Coax Alliance”. They figured out a way to be able to run a digital network signal over the existing coax wires present in most houses, and make it compatible with Ethernet.

Early versions weren’t very fast (version 1.0 in 2006 was capable of 100Mbps), but as they applied some of the same RF tricks that Wi-Fi used, they were able to make it perform at a much higher level (Version 2.5, released in 2016, is capable of 2.5Gbps). Version 3 aims to provide 10Gbps.

MoCA will support up to 16 nodes on the wire, and can coexist with some shockingly bad signal conditions. It operates from 1125MHz up to 1675MHz, which is above where cable TV signals live but still quite functional over short distances with existing coaxial cable and splitters. It forms a full mesh where each node talks directly to the other nodes that it needs to, using a combination of Time-Division Multiple Access (TDMA) and Orthogonal Frequency Division Multiple Access (OFDMA), a trick that is also used by WiFi 6/802.11ax to make better use of airtime.

If you want a quick summary of how it works, device maker GoCoax has a great rundown on their home page.

MoCA also requires putting in a filter between the pole and your house so that your MoCA signals don’t end up putting your neighbors on the same network or screwing with the cable company’s lines.

Most current cable company provided gateways also support MoCA, and adding a MoCA transceiver to a live coaxial port on the wall in your house basically acts as another ethernet port on the gateway device. Cable companies commonly use this for IP based set-top boxes (over coax!) and additional wireless access points (such as Cox’s “Panoramic WiFi” and XFinity’s “XFi pods”).

While I haven’t tested the cable company’s wireless offerings (because I’m not a masochist, and I have access to vastly better wifi gear), I did want to find out how well MoCA performed as a straight Ethernet bridge for connecting up the client’s access points in such a way that I didn’t have to use wireless meshing, which performs quite poorly in most residential environments.

So I grabbed a couple of MoCA adapters (and a splitter) from Amazon and tried it out in a couple of different configurations. Testing was done from a MacBook Pro connected to the network via Ethernet, and a WLANpi connected on the other end of a MoCA adapter.

The test setup.

The first thing I noticed is that these devices are truly “plug and play”. I hooked one up to the coax in my office and the Ethernet side went into my switch. I then hooked 3 more up around the house, and on two of them, hooked up an access point, and on the third, the WLANpi. The access points came up and showed up in the controller just like they would on Ethernet (caveat: I had to power them externally). The WLANpi grabbed a DHCP address, and I started testing, using the librespeed web speed test built into the WLANpi, as well as iPerf3, also built into the Pi.

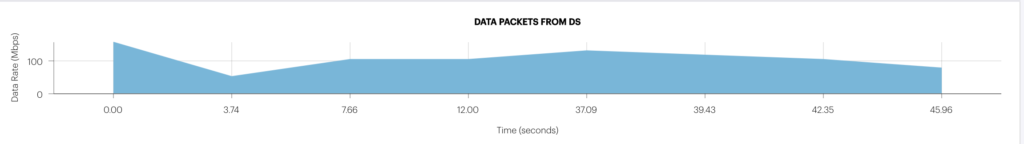

First, the baseline with the WLANpi connected directly to the switch. Pretty solid, about what you would expect from a gigabit network.

Next: The WLANpi at the other end of a 4-node MoCA 2.5 network:

An ever so slight reduction in throughput, and an extra few milliseconds of latency.

Directly connecting two nodes performed similarly.

So, bottom line, MoCA is a pretty solid option if all you have available is coax. It has the full wire speed, and doesn’t introduce the kind of latency that a wifi mesh does.

Downside: The MoCA spec doesn’t seem to provide for any means of powering converters centrally, or pushing PoE to the Ethernet device.

Other MoCA devices worth looking at:

  • Kiwee Broadband, has a passthru port as well as a second Ethernet port.
  • GoCoax, another inexpensive option that works on v2.5.

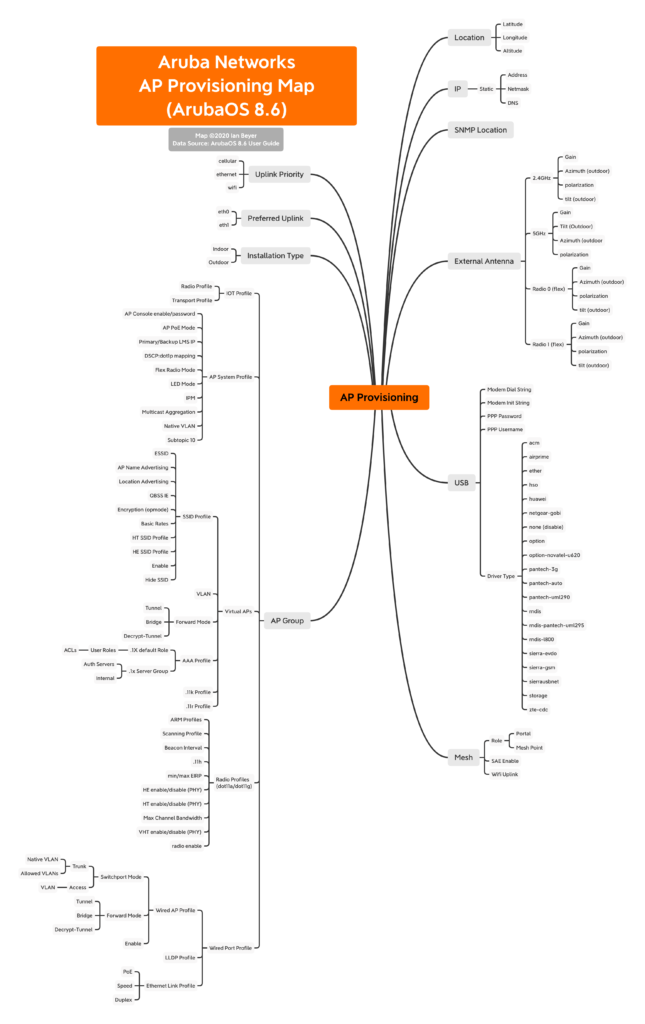

Aruba AP Provisioning

As part of trying to wrap my own head around the various profile dependencies in actually provisioning an Aruba AP , I’ve mapped it out. This is the <stuff> that goes into this process:

provision-ap
read-bootinfo {wired-mac|ip-addr|ap-name} <data>
<stuff>
reprovision {serial|wired-mac|ip-addr|ap-name} <data>

As you go to provision an AP, start on the outside of this map and work your way in. This will make sure that all the various profiles you need are in place. The web UI hides some of this stuff from you and doesn’t organize it as logically as one might expect.

When doing this on the CLI in Mobility Master Conductor, make sure you’re in the right corner of your hierarchy (namely, /md or /md/GROUP). And remember that on MMMCR, show run is not nearly as useful as show config effective… And config purge-pending sure comes in handy when you goof something up.

You can also do show profile-hierarchy but that only shows the profile entries and it doesn’t fit neatly in a terminal window.

Lastly, don’t forget about show references to see what other profiles reference the one you’re interested in.

Caveat: This is not comprehensive by any stretch. There are dozens more options, these are just the more common ones. If I goofed, let me know. All the gory details can be found in the ArubaOS User Guide.
