One of my favorite things to do when I’m at a Disney park is to play the wireless nerd’s version of Hidden Mickeys: Trying to spot the myriad creative ways in which Disney’s Imagineers have blended their excellent wireless network into the carefully contrived scenery. It truly is magical how they can make wireless everywhere while keeping it nearly invisible.
So naturally, when I’m wearing the wireless engineer hat and have a challenge where I get to flex some of that creativity, I’m all over it.

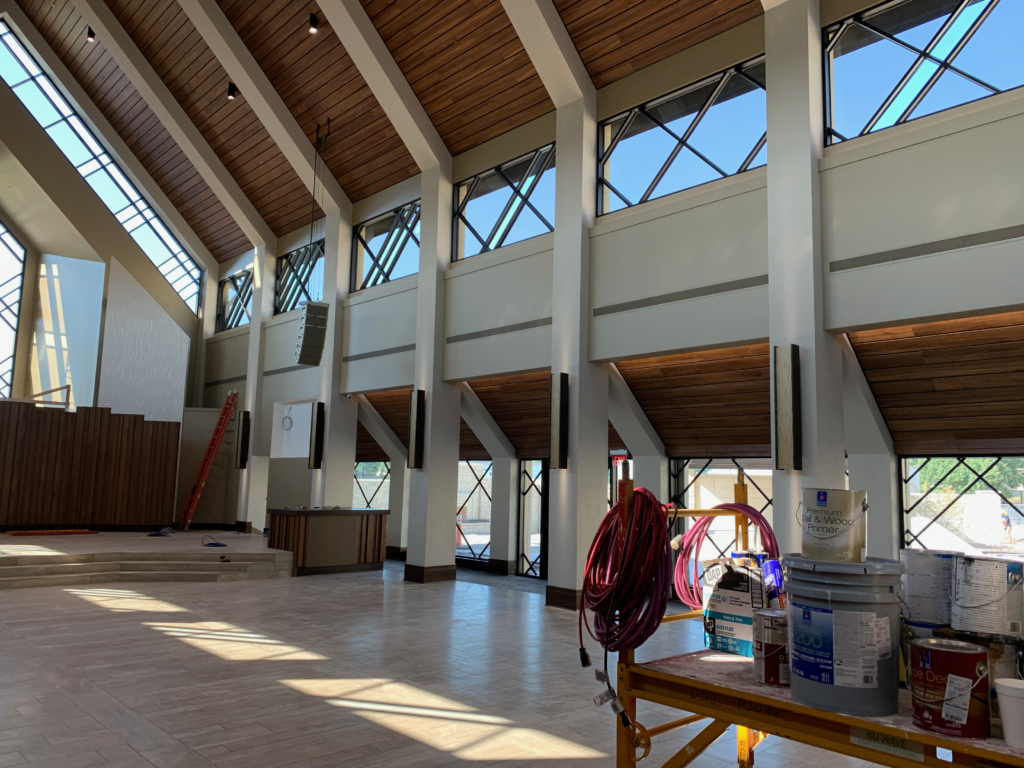

A few years back, I helped a church in Wichita overhaul their aging and underpowered WiFi by designing and installing a new Ruckus system. Last year, they embarked on a new project to add a chapel to their campus. Naturally they wanted to extend the wireless LAN to this new building.
But… It’s a chapel aimed at doing weddings and other sorts of events, so it was paramount that the wireless equipment not be visible, to maintain clean architectural lines with a minimum amount of obvious tech equipment. Some concessions had to be made for audiovisual, but visible access points were a (network) bridge too far.

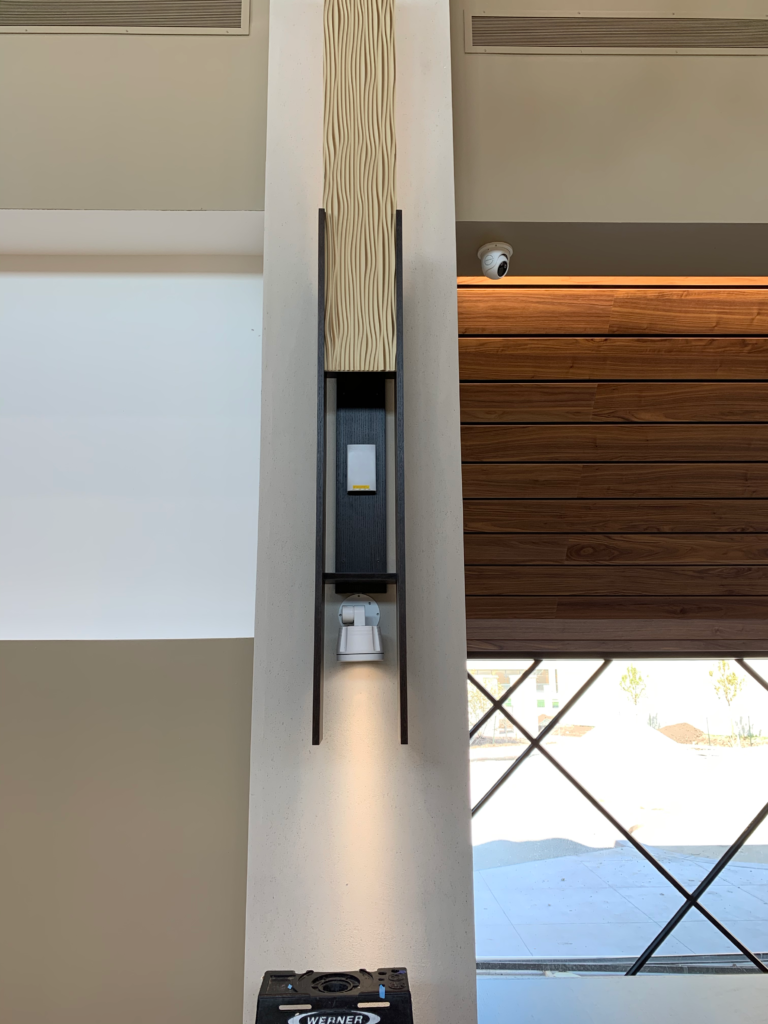

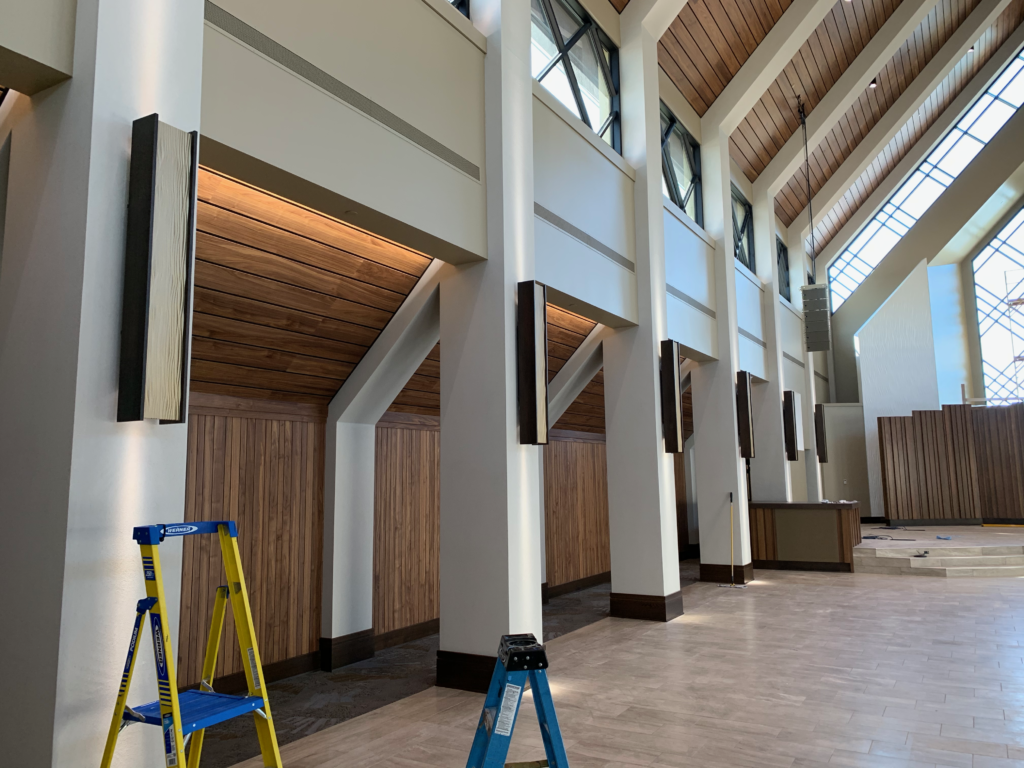

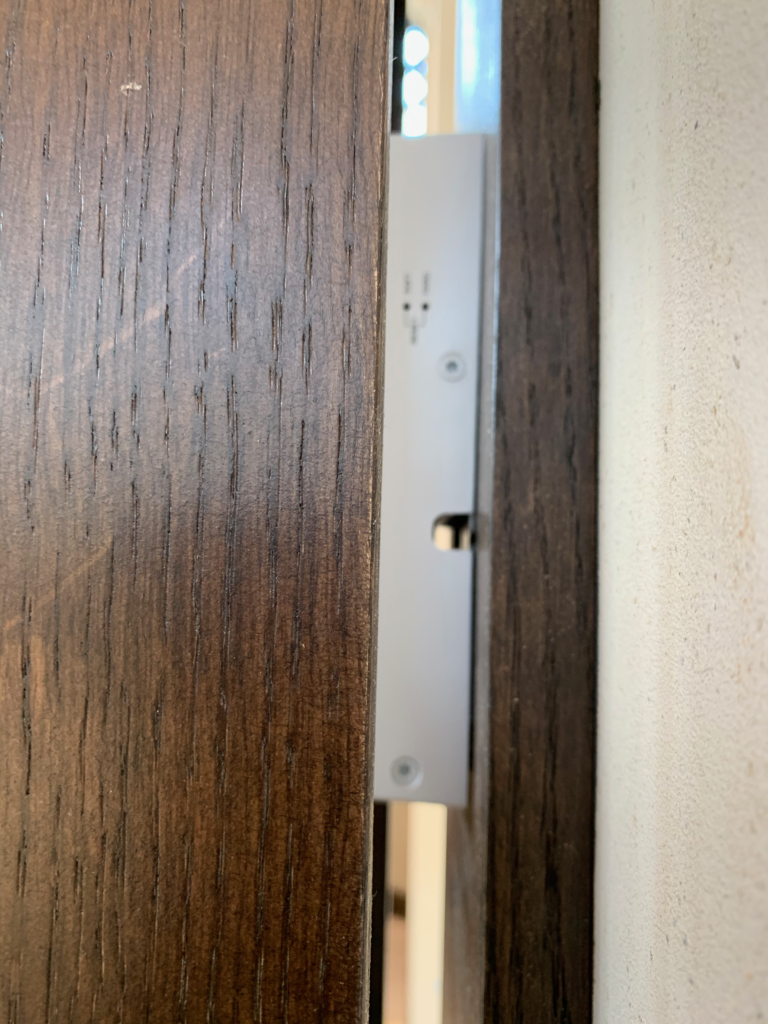

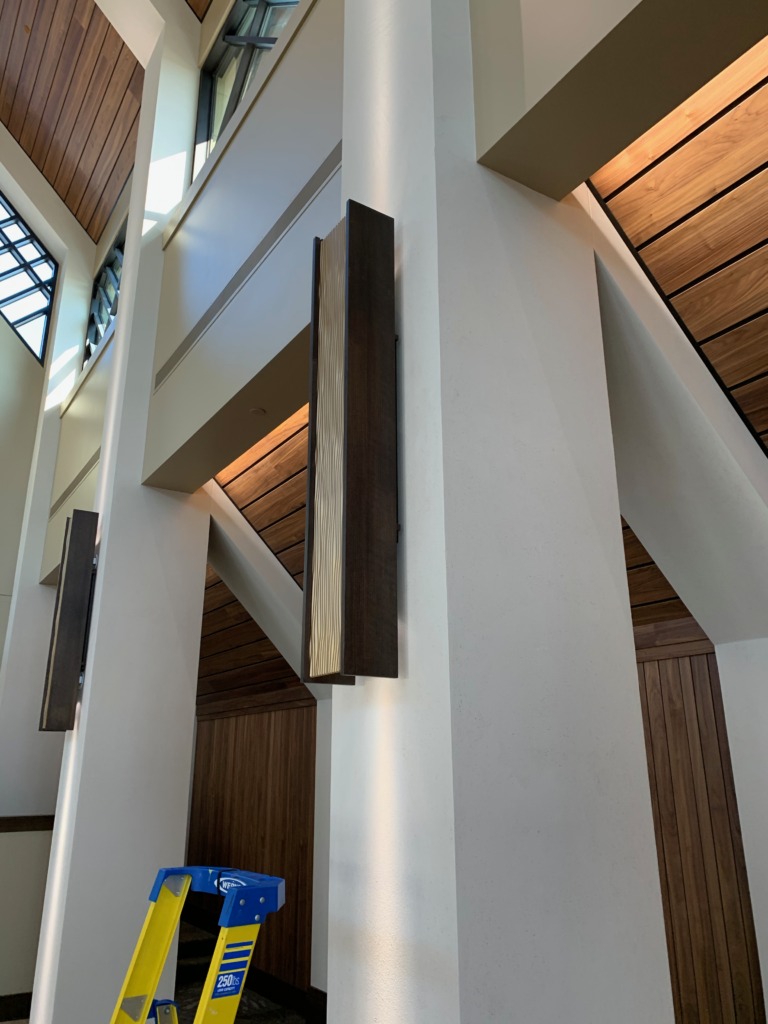

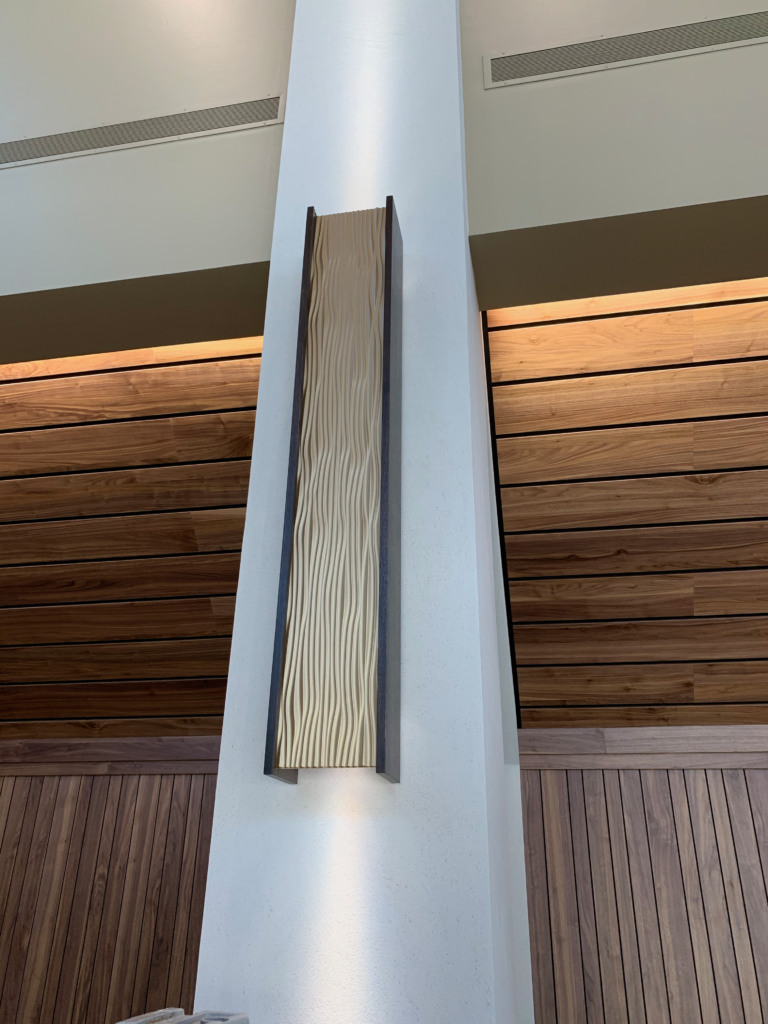

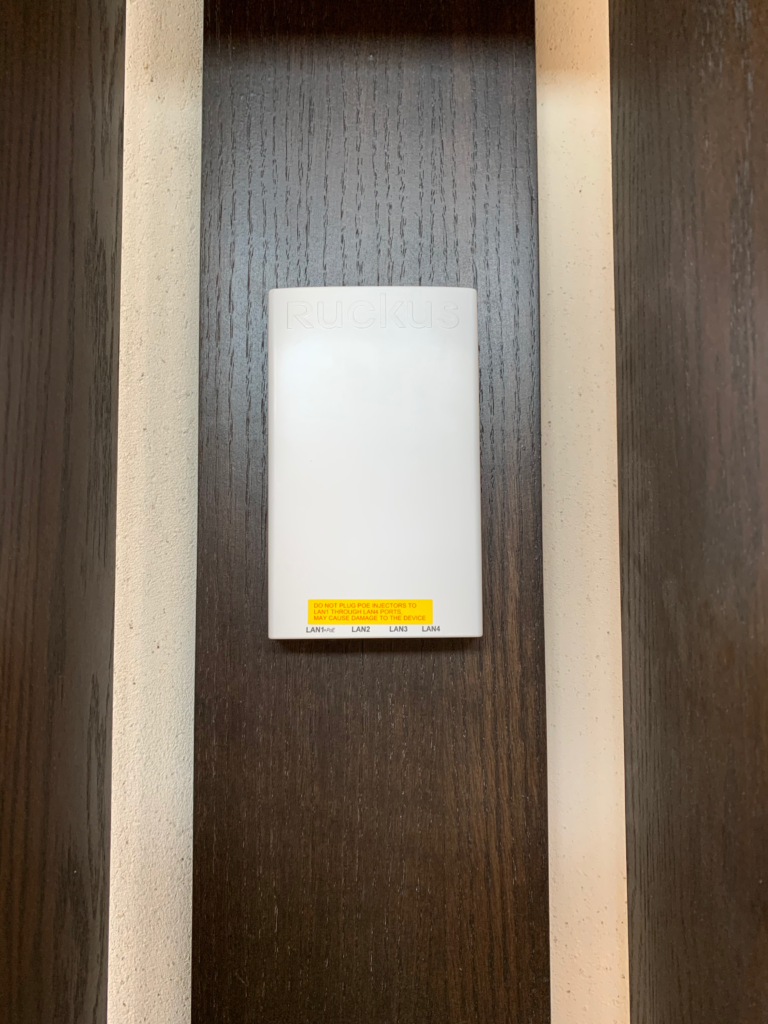

After pondering the problem as well as observing drawings and renderings, I happened upon the architectural lighting elements in the plan that were mounted on each of the columns. I dug into the design of these and discovered that they were a pair of LED fixtures concealed inside some finish carpentry with a textured plastic surface. And most importantly, there was an empty space in the middle between the two light fixtures that measured about 20cm square by 40cm high, and centered approximately 8 feet off the floor. Not only was that low enough to keep the APs close to the clients, there was plenty of room to put in one of the Ruckus H510 Wall APs designed for the hospitality market (which I also currently have in my house running Unleashed, although they will soon make way for some of the Aruba AP303H units or their new Instant On AP11D counterpart). I’m a big fan of these in-wall units for many reasons.

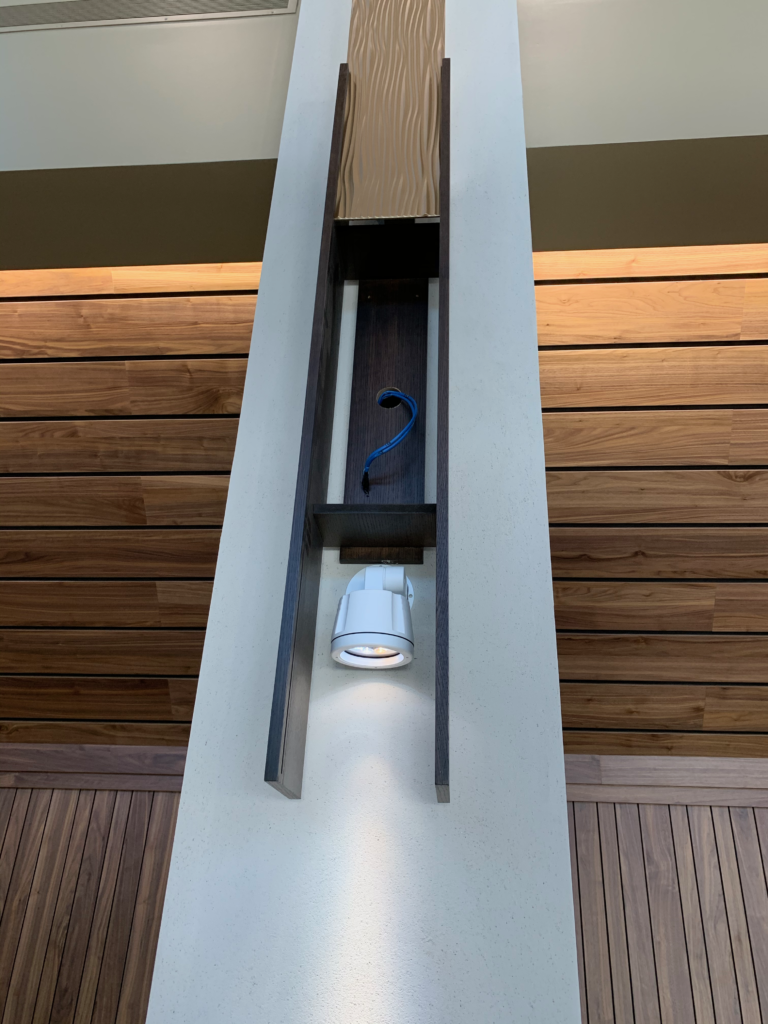

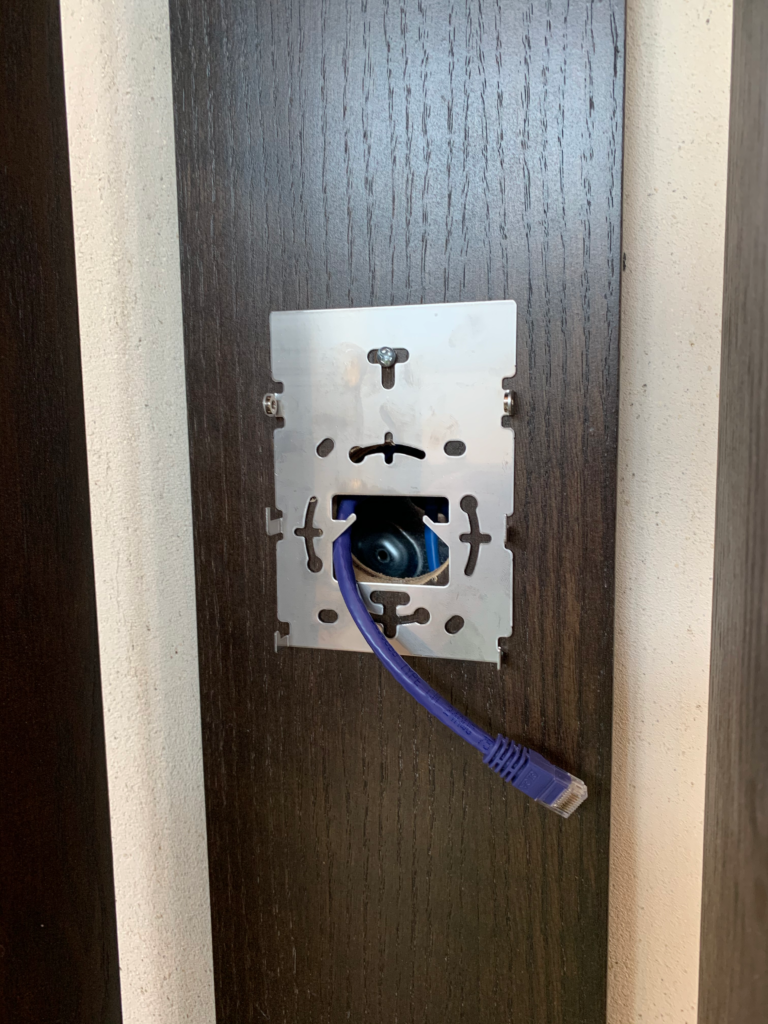

I asked the electricians to give me a box and conduit to four of these columns, as well as a pair of data cables. I only planned to use two access points initially, but since running cable would be prohibitively difficult after the buildout, I wanted to keep my options open should capacity needs increase in the future.
After many months of construction (Summer of 2019 was an utterly awful weather summer if you were in the construction business), I finally got the green light to install these. I took a bit of personal time on my way down to another job in Oklahoma for my employer, and executed the plan. I’m pretty happy with the results.
